Custom Bottle Design Gallery

Sculpting the
Perfect Curve

Intellectual Property Notice

All showcase projects are client-authorized under strict NDA compliance.

Your designs remain confidential.

Start Your Project

5-Liter Mineral Water Bottle with Handle Design

Capacity	5000
Neck Finish	45mm
Weight	95
Cavities	2
Material	S136 stainless steel

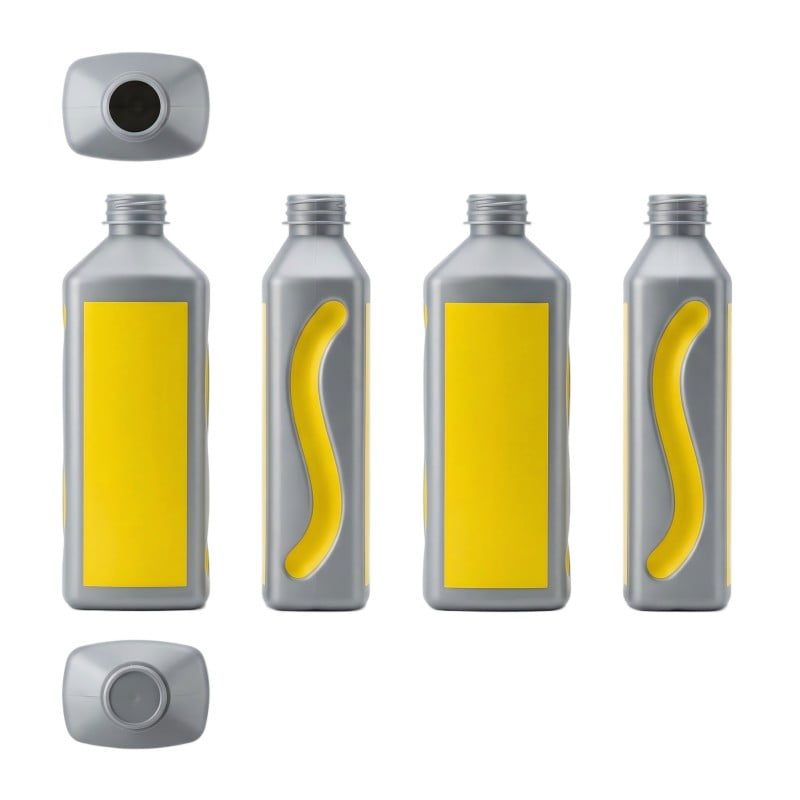

Space-Saving Square Cooking Oil PET Bottle Design

Capacity	450
Neck Finish	28mm
Weight	25
Cavities	5
Material	S136 stainless steel

300ML juice bottle design drawing

Capacity	300
Neck Finish	38mm
Weight	18
Cavities	8
Material	S136 stainless steel

PET wine bottles Design

Capacity	600
Neck Finish	30_25
Weight	19
Cavities	5
Material	S136 stainless steel

380ml Water Bottle Blowing Mold Case

Capacity	380
Neck Finish	29_25
Weight	12
Cavities	3
Material	S136 stainless steel

5-liter water bottle mold with handle case

Capacity	5000
Neck Finish	45mm
Weight	120
Cavities	1
Material	7075 aluminum

4.5L water bottle design case

Capacity	4500
Neck Finish	45mm
Weight	110
Cavities	2
Material	S136 stainless steel

16.5L Disposable Large Water Bottle Design Case

Capacity	1650
Neck Finish	55mm
Weight	259
Cavities	1
Material	7075 aluminum

Beverage Global

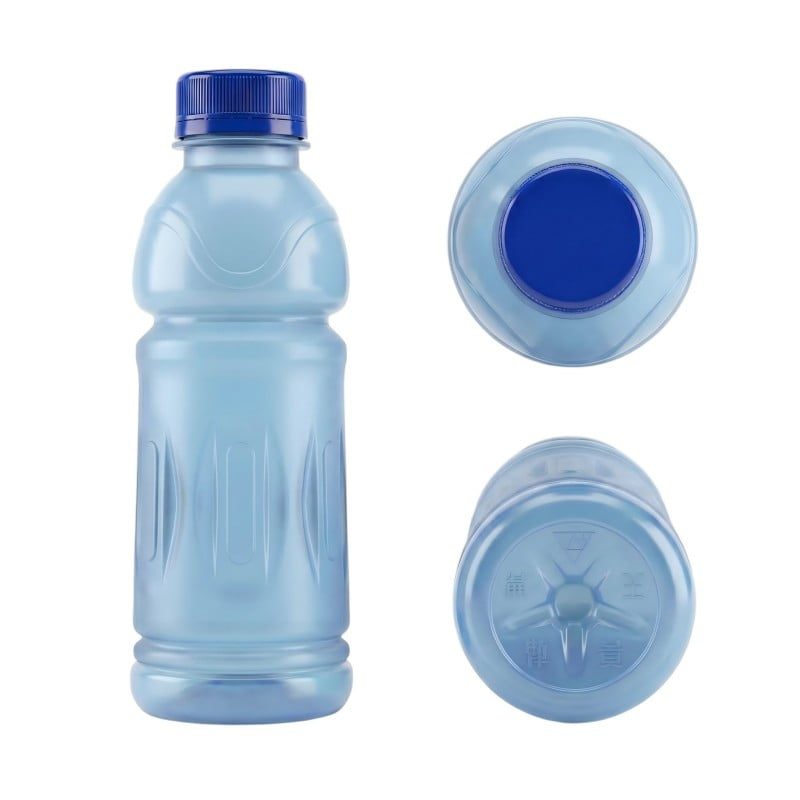

Functional beverage bottle design case

Capacity	650
Neck Finish	38mm
Weight	24
Cavities	4
Material	7075 aluminum

565ml Water Bottle Design Case

Capacity	565
Neck Finish	30_25
Weight	15
Cavities	6
Material	7075 aluminum

Beverage Global

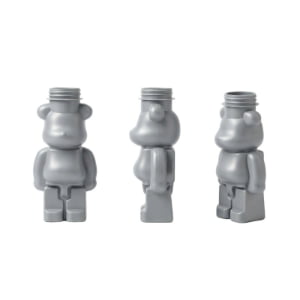

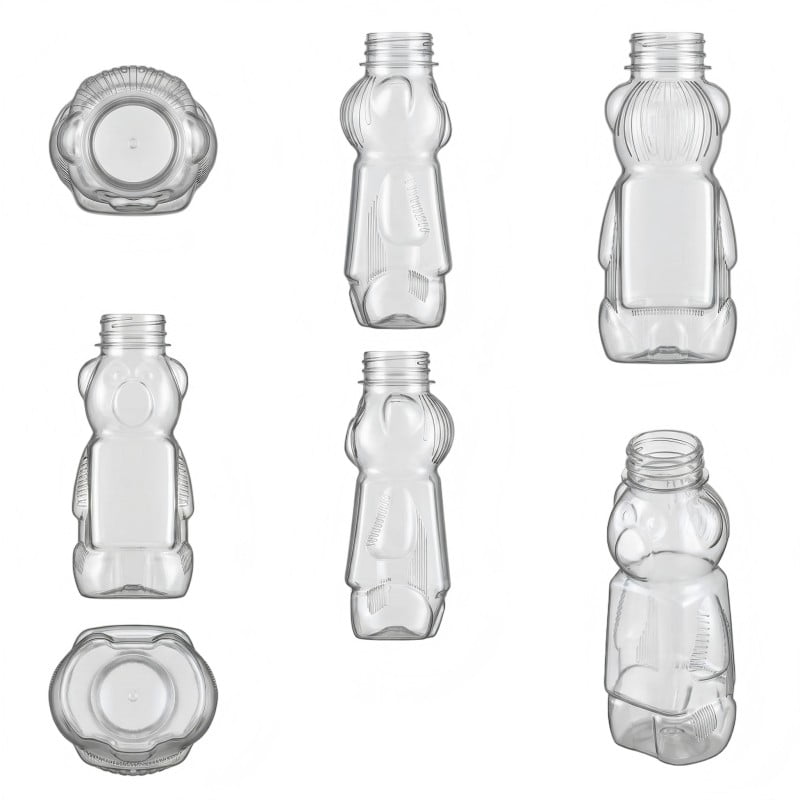

Bear-shaped bottle mold case

Capacity	320
Neck Finish	30_25
Weight	18
Cavities	1
Material	7075 aluminum

450ml Water Bottle Case

Capacity	450
Neck Finish	29_25
Weight	20
Cavities	8
Material	7075 aluminum

1.2L Ultra-Lightweight Water Bottle Solution

Capacity	1200
Neck Finish	30_25
Weight	16
Cavities	4
Material	7075 aluminum

Beverage Global

Juice Bottle Mold Case

Capacity	450
Neck Finish	38mm
Weight	28
Cavities	4
Material	7075 aluminum

Daily Chemical Global

300ml Shampoo Bottle Project

Capacity	300
Neck Finish	30_25
Weight	26
Cavities	5
Material	7075 aluminum

Food & Dairy Global

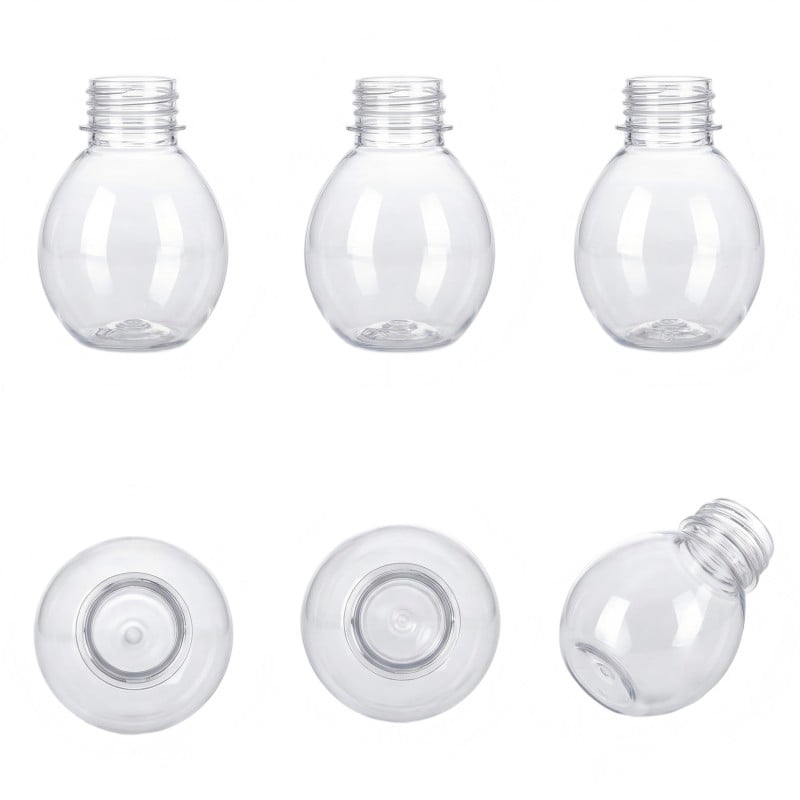

PET spherical bottle design case

Capacity	100
Neck Finish	30_25
Weight	11
Cavities	4
Material	7075 aluminum

Pharmaceutical Global

Pharma PET Bottle Solution

Capacity	200
Neck Finish	28mm
Weight	24
Cavities	6
Material	7075 aluminum

Beverage Global

500ml CSD Bottle Production Case

Capacity	500
Neck Finish	pco1810
Weight	20
Cavities	10
Material	S136 stainless steel

750ml purified water bottle project

Capacity	750
Neck Finish	30_25
Weight	18
Cavities	5
Material	7075 aluminum

Beverage Global

300ml juice bottle Bottle Design Case

Capacity	300
Neck Finish	38mm
Weight	22
Cavities	5
Material	7075 aluminum

Beverage Global

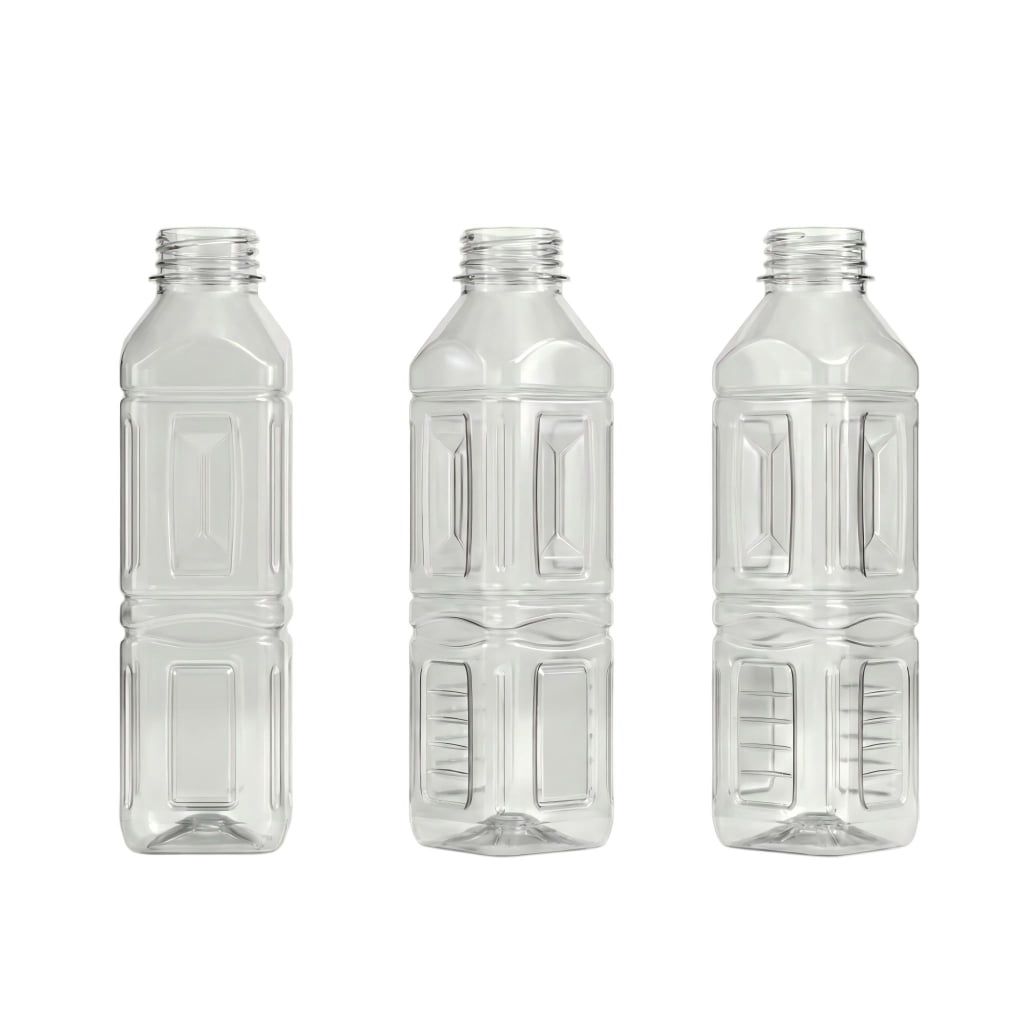

1L Square Bottle Mold Case

Capacity	1000
Neck Finish	30_25
Weight	24
Cavities	2
Material	7075 aluminum

Beverage Global

Custom Shaped Bottle Project

Capacity	300
Neck Finish	28mm
Weight	18
Cavities	1
Material	7075 aluminum

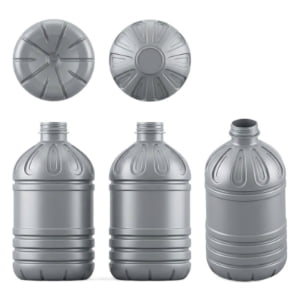

12-liter large bottled water Production case

Capacity	1200
Neck Finish	55mm
Weight	240
Cavities	1
Material	7075 aluminum

Wide Mouth Jar Global

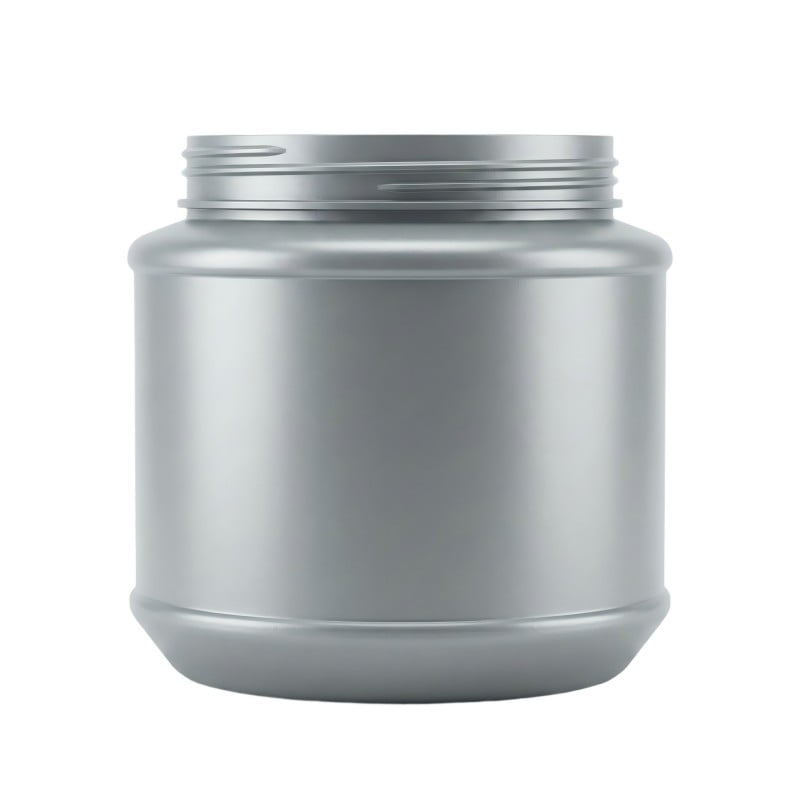

PET Wide Mouth Candy Jar Project

Capacity	1250
Neck Finish	wide_mouth
Weight	97
Cavities	1
Material	S136 stainless steel

550ml round water bottle design

Capacity	550
Neck Finish	30_25
Weight	22
Cavities	6
Material	S136 stainless steel

Beverage Global

250ml hot-fill bottles

Capacity	250
Neck Finish	pco1810
Weight	15
Cavities	10
Material	S136 stainless steel

Water southeast_asia

Solutions for 15-liter PET bottles

Capacity	15000
Neck Finish	45mm
Weight	260
Cavities	1
Material	S136 stainless steel

Engineering Milestone

Classic Case Studies

A selection of benchmark projects that defined our standards for precision. These successful deployments demonstrate the enduring reliability of Jindong molds over decades of operation.

OEM Production

Legacy Data

Project Specification

Capacity

Neck Finish

Weight

Cavities

Action

Solutions for 15-liter PET bottles

Case Study / 1 Cavities

Capacity 15000

Neck 45mm

Weight 260

Cavities

1

250ml hot-fill bottles

Case Study / 10 Cavities

Capacity 250

Neck pco1810

Weight 15

Cavities

10

550ml round water bottle design

Case Study / 6 Cavities

Capacity 550

Neck 30_25

Weight 22

Cavities

6

PET Wide Mouth Candy Jar Project

Case Study / 1 Cavities

Capacity 1250

Neck wide_mouth

Weight 97

Cavities

1

12-liter large bottled water Production case

Case Study / 1 Cavities

Capacity 1200

Neck 55mm

Weight 240

Cavities

1

Custom Shaped Bottle Project

Case Study / 1 Cavities

Capacity 300

Neck 28mm

Weight 18

Cavities

1
